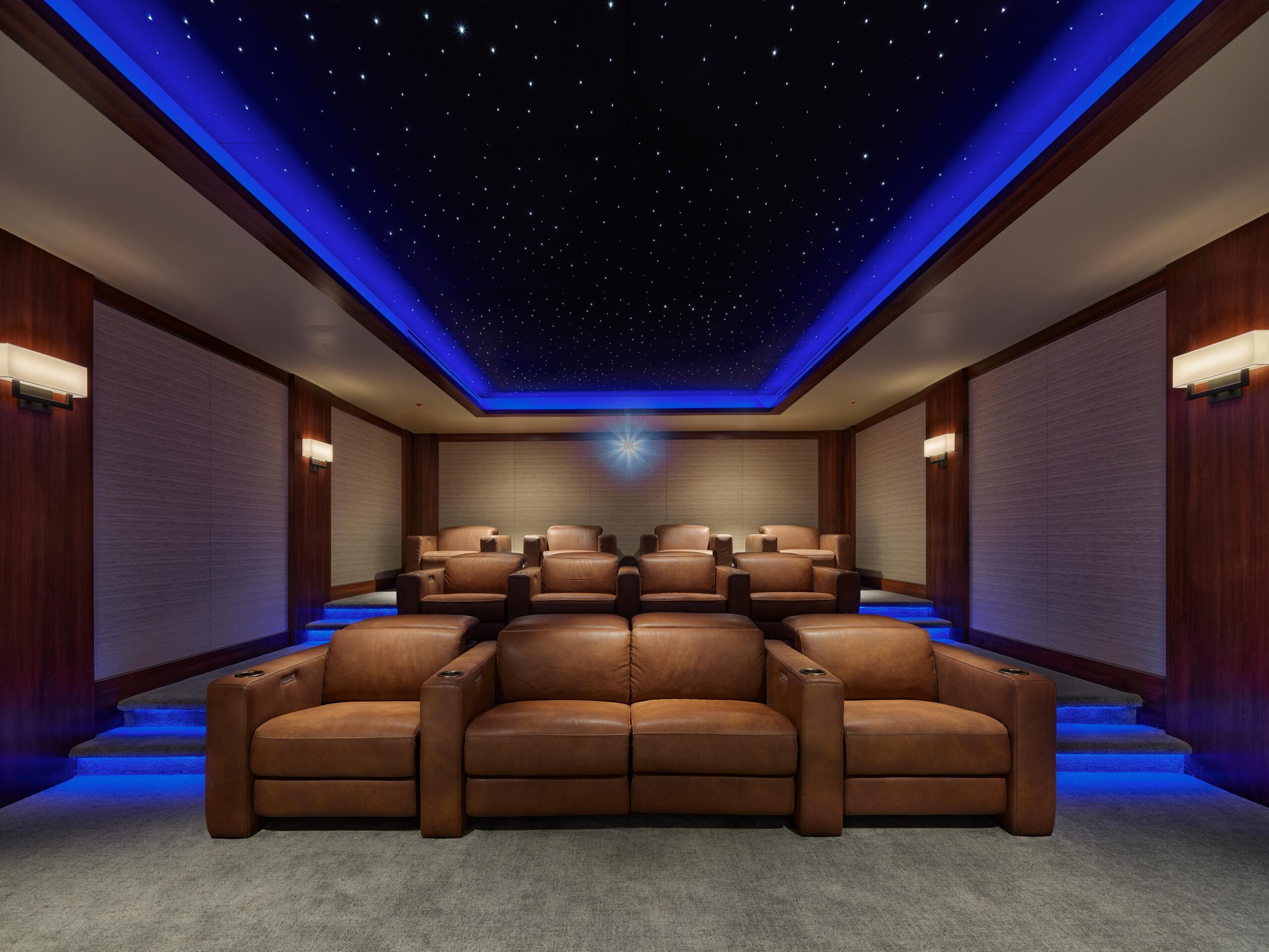

A true luxury home theater IS about creating an immersive escape where sound moves you as much as the story does.
Creating the perfect luxury home theater is about more than just selecting premium seating or state-of-the-art equipment—it’s about ensuring the sound environment elevates the entire experience. Home Theater Acoustics play a pivotal role in achieving this, transforming a space from merely functional to utterly immersive.Â
Why Acoustics Matter in Home Theaters
Creating an Auditory Sensory Experience
Imagine watching your favorite film and struggling to hear the dialogue because of poor sound dynamics. Or worse, having the music and sound effects overshadow the subtle audio details. Without proper home theater acoustics, even the most advanced equipment falls short.
Understanding and implementing proper acoustic enhancements ensures every element of sound—dialogue, music, and sound effects—is clear, balanced, and immersive. A theater with great acoustics transforms ordinary entertainment into an extraordinary sensory experience. Whether it’s a suspenseful whisper or the thunderous boom of an action scene, the right sound dynamics make every moment unforgettable.
3 Common Challenges in Home Theater ACOUSTICS
Room Shape and Size
Irregular dimensions and vaulted ceilings can disrupt sound flow, causing dead spots, echoes, or unintended bass traps. While avoiding such spaces for theaters is ideal, it’s not always practical or desirable. Impeccable acoustics can still be achieved through tailored acoustic treatments and strategic speaker placement to overcome room shape challenges.
Hard Surfaces
Not all hard surfaces create issues, just ones that aren’t planned for. Hard surfaces, like untreated walls and ceilings, reflect sound, create echoes and disrupts the clarity of dialogue and music. Depending on the situation, designers and engineers will use sound diffusion and absorbtion panels to counteract any possible interference.
Seating Placement
Optimal seating placement is vital for ensuring consistent sound across all listening positions. To ensure top acoustical performance in a room, seating placement must be decided early on in the process so that engineers and designers can consider the way the seat’s shape, placement and materials will interact with the sound.
The Science Behind Home Theater Acoustics
Achieving perfect acoustics is a blend of art and science. It begins with balancing acoustic panels for home theaters that absorb sound and acoustic wall panels for home theaters that diffuse it. Key components include:
- Absorptive Materials: These reduce echoes and excessive reflections to ensure clarity.
- Diffusion Materials: Scatter sound evenly throughout the room for an immersive experience.
- Reflective Materials: Redirect sound waves by bouncing them off surfaces.
- Bass Traps: Control low-frequency sound to prevent overpowering bass.
When these elements are paired with expertly placed speakers, they create an unparalleled soundscape where every seat feels like the best in the house.

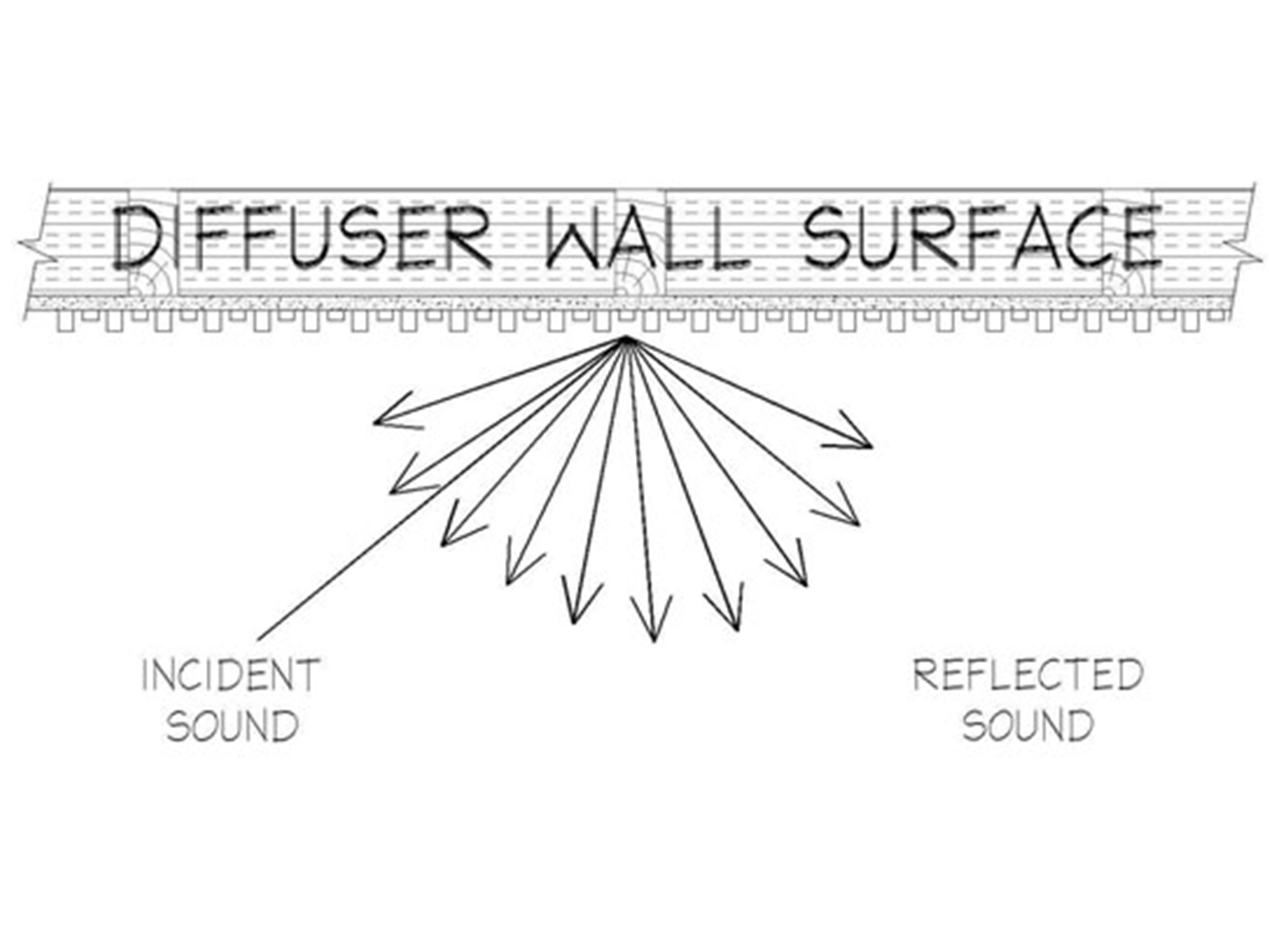

Diffusion
- Purpose: Scatters sound energy evenly across a room rather than removing it, maintaining a sense of natural ambiance.
- How it Works: Diffusers are designed with irregular surfaces that redirect sound waves in multiple directions. This minimizes strong reflections and prevents “hot spots.”
- Where to Use: Often placed at the back wall of a home theater or in spaces where natural ambiance is desirable without excessive reflection.
- Impact: Retains the room’s liveliness while eliminating harsh echoes, ideal for creating balanced acoustics in luxury theaters and multi-purpose rooms.

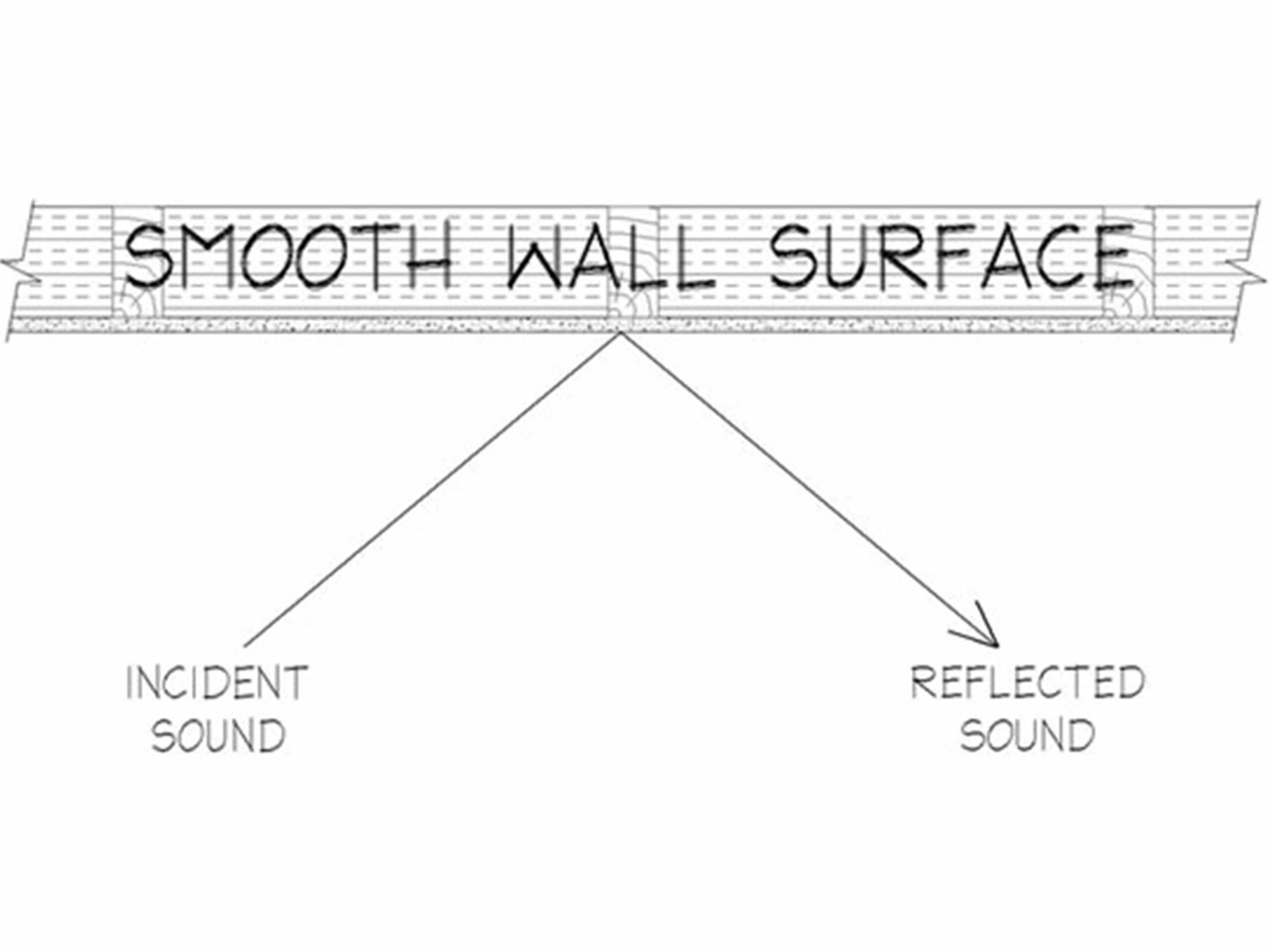

Reflection
- Purpose: Redirects sound waves by bouncing them off surfaces, influencing a space’s acoustic quality.
- How it Works: Sound waves reflect at angles matching their incidence, with surface type—smooth or rough, hard or soft—shaping clarity and direction.
- Where to Use: Reflective surfaces can enhance sound in targeted areas, like concert halls, but poor placement can create echoes and reverberation.
- Impact: Properly managed reflections enhance sound clarity and distribution, while uncontrolled reflections may degrade acoustic performance
Absorbtion
- Purpose: Reduces sound energy by converting it into heat, minimizing unwanted echoes and reverberation in a room.
- How it Works: Made from porous materials like foam, fiberglass, or acoustic fabric, absorptive panels soak up specific frequencies, particularly mid and high frequencies.
- Where to Use: Ideal for reducing flutter echoes and room ring, absorption panels are often placed on walls, ceilings, and corners.
- Impact: Creates a quieter, more controlled sound environment by reducing overall reflections. Overuse, however, can make a room sound “dead.”
The ROLE OF BASS TRAPS IN ACOUSTICS
Bass traps are a cornerstone of precise home theater acoustics, designed to manage low-frequency sound waves that often create acoustic imbalances in a room. Without proper treatment, bass frequencies can accumulate in corners and along walls, leading to issues like muddiness, booming, or uneven sound distribution.
These specialized absorptive panels are engineered to target and reduce excess bass energy, ensuring clarity and balance in every note and explosion. By integrating bass traps into a home theater, you create a sound environment where deep frequencies are controlled and harmonized, enhancing the overall audio experience.
Unique Challenges of Low Frequencies
Low-frequency sound waves, or bass, have significantly longer wavelengths compared to mid or high frequencies. These waves can measure several feet, leading to unique acoustic problems like standing waves and resonance. Regular sound-absorbing panels, optimized for shorter wavelengths, lack the thickness and density required to absorb the energy of these long waves effectively. Bass traps, on the other hand, are engineered with thicker and denser materials or resonant systems to manage these deeper sound energies.
Targeted Solutions for Resonance and Standing Waves
Resonance and standing waves can distort sound by amplifying or canceling certain frequencies, leading to an unbalanced listening experience. Bass traps combat these issues by using specialized designs like cavities, membranes, or Helmholtz resonators to dissipate low-frequency energy. These solutions are highly effective in neutralizing problem areas, ensuring a smooth and uniform sound response across the room.

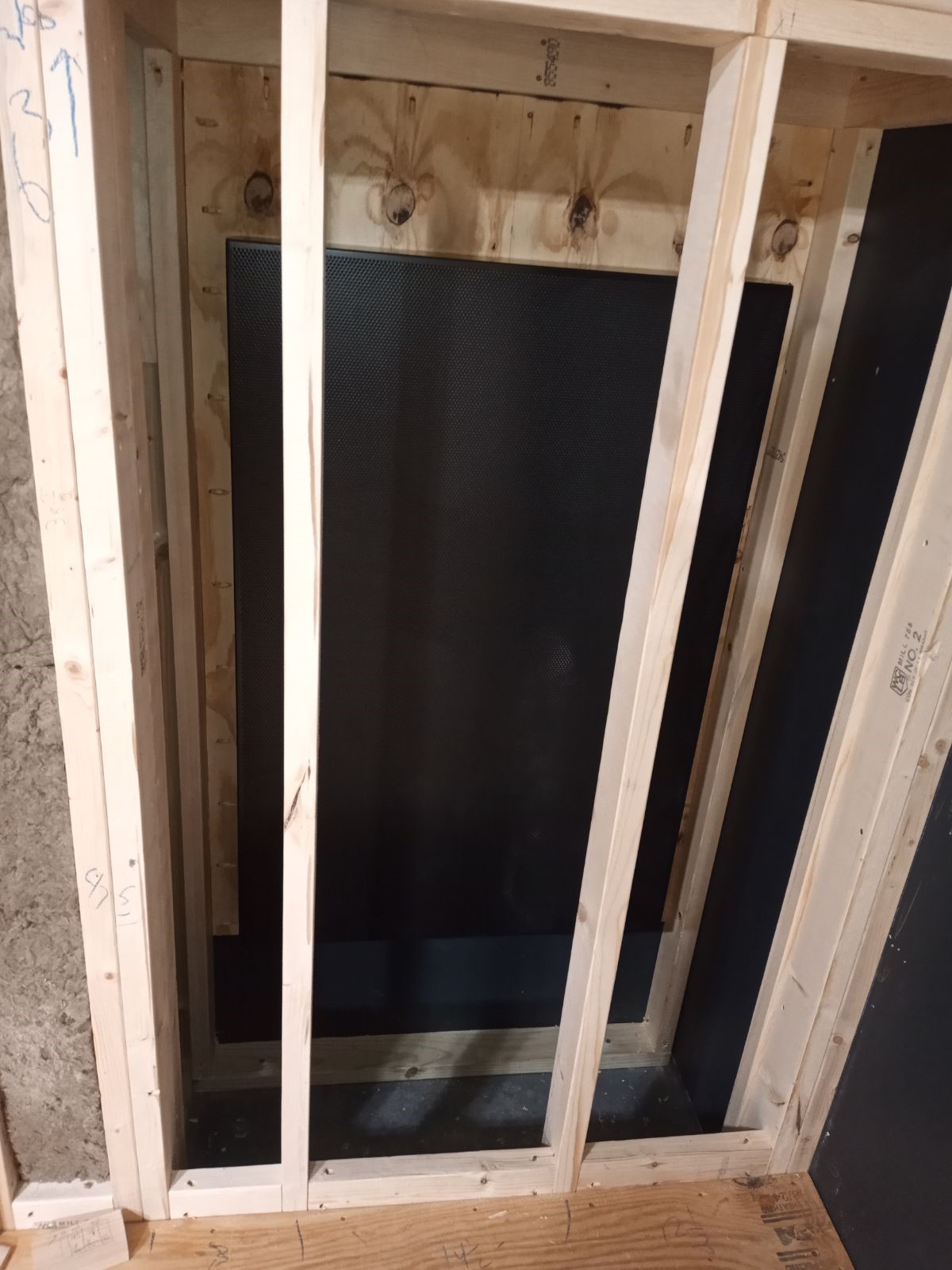

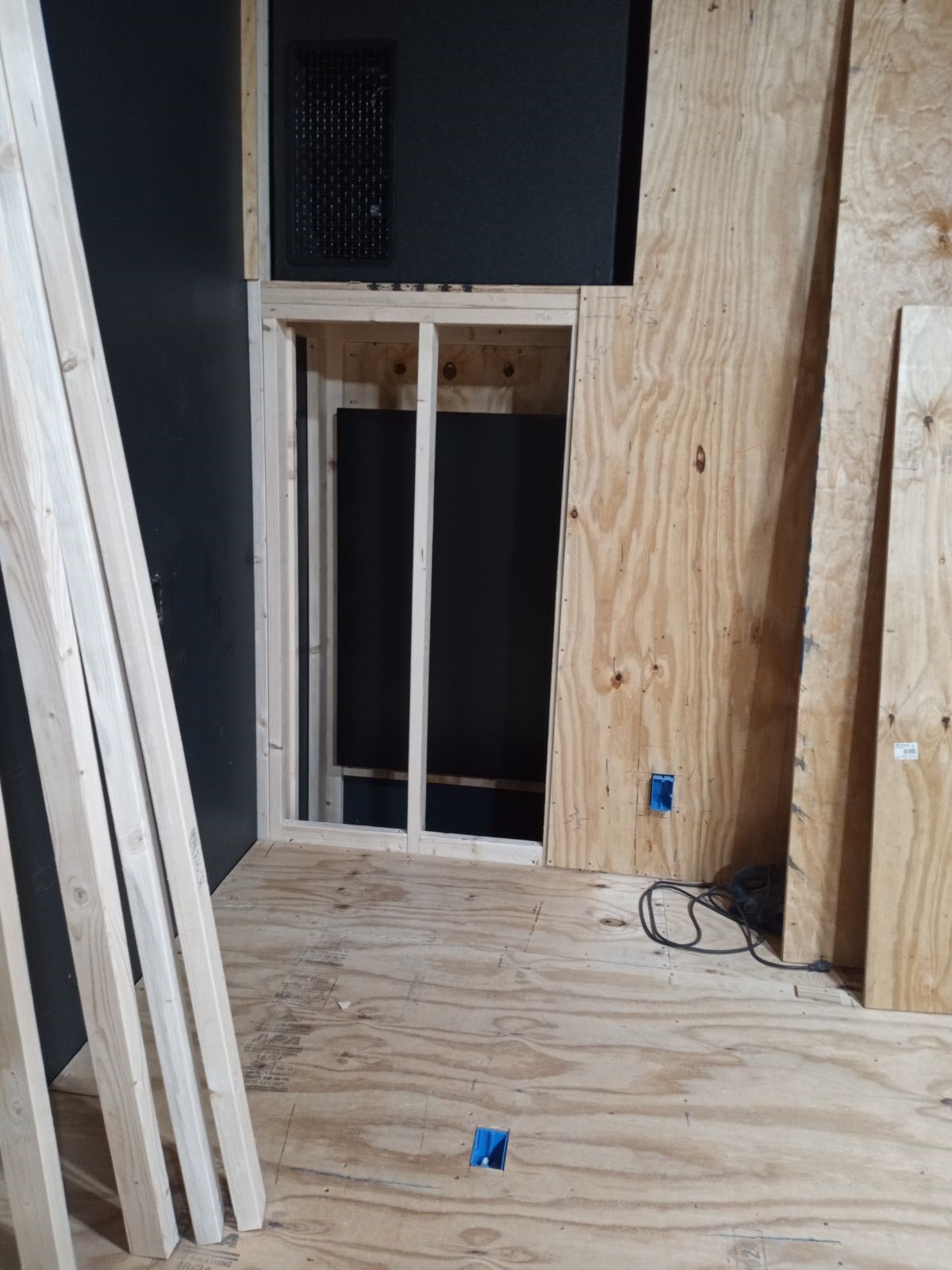

Strategic Placement for Maximum Impact

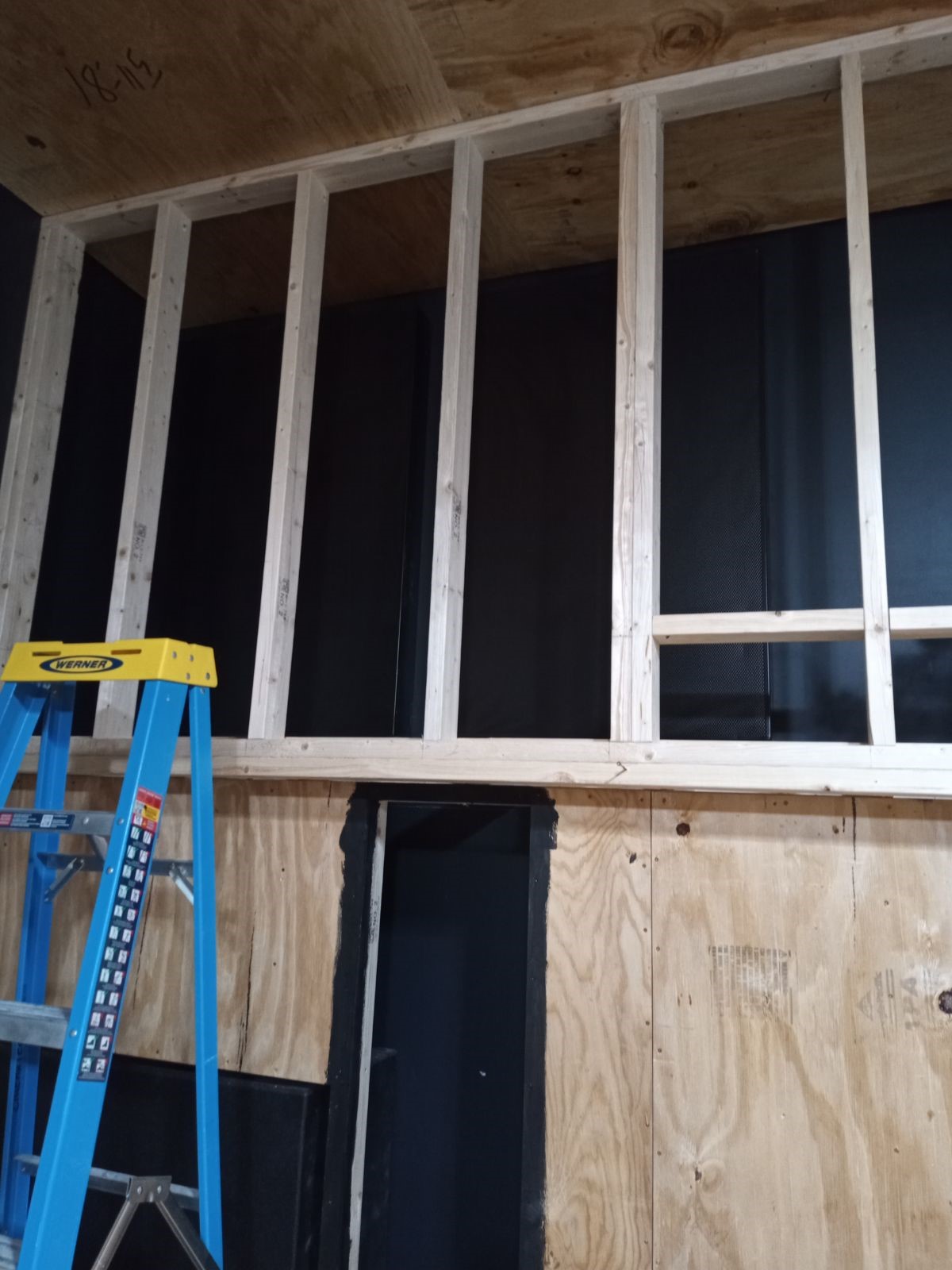

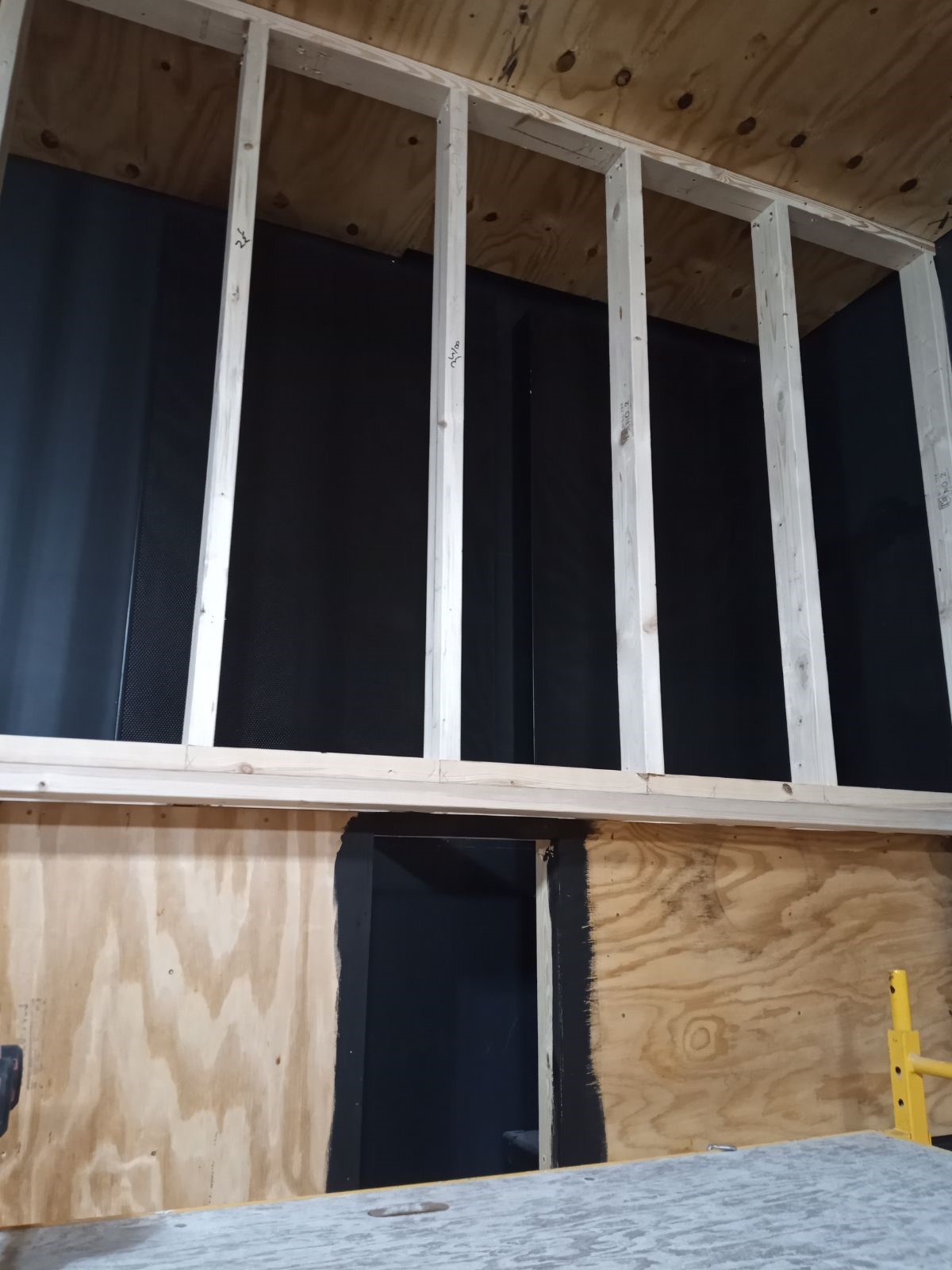

Bass energy tends to accumulate in corners, along walls, and at ceiling junctions. To address this, bass traps are strategically deployed in these areas, focusing on hotspots where low frequencies are most problematic. When paired with standard sound panels, which handle mid and high frequencies, bass traps create a comprehensive acoustic solution that balances the entire frequency spectrum.
By complementing regular acoustic treatments, bass traps ensure a well-rounded, immersive sound experience in home theaters. They tackle the deep, resonant challenges of low-frequency waves, paving the way for unparalleled precision and clarity in sound design.
acoustical enhancement vs sound isolation
When designing a luxury home theater, it’s essential to distinguish between acoustical enhancement and sound isolation—two complementary yet distinct approaches to optimizing a space for sound.
Acoustical enhancement (Acoustics) focuses on improving the quality of sound within the room, ensuring clarity, balance, and immersion. This is achieved through strategically placed treatments like absorption panels, diffusers, and bass traps that shape how sound waves interact within the environment. The result is a harmonious audio experience, whether you’re enjoying a symphony or the latest blockbuster.

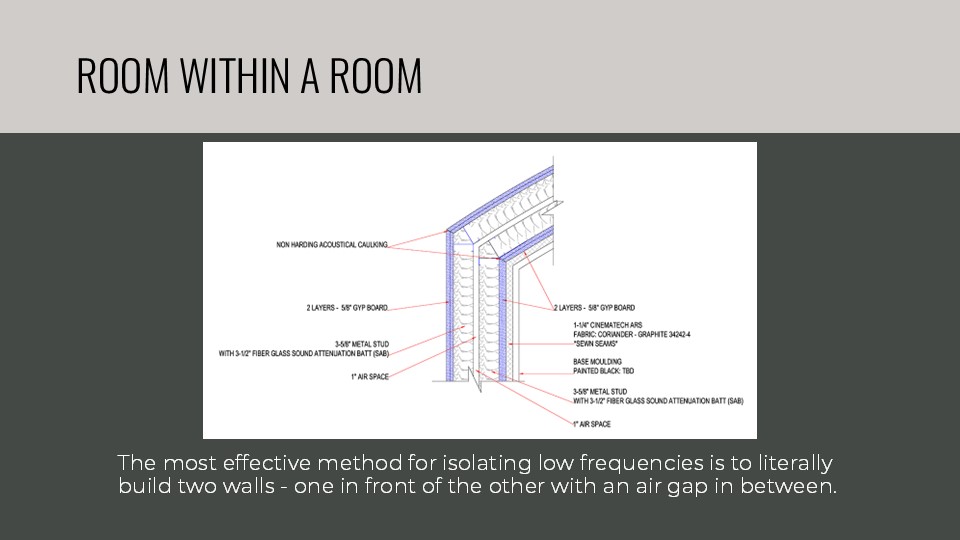

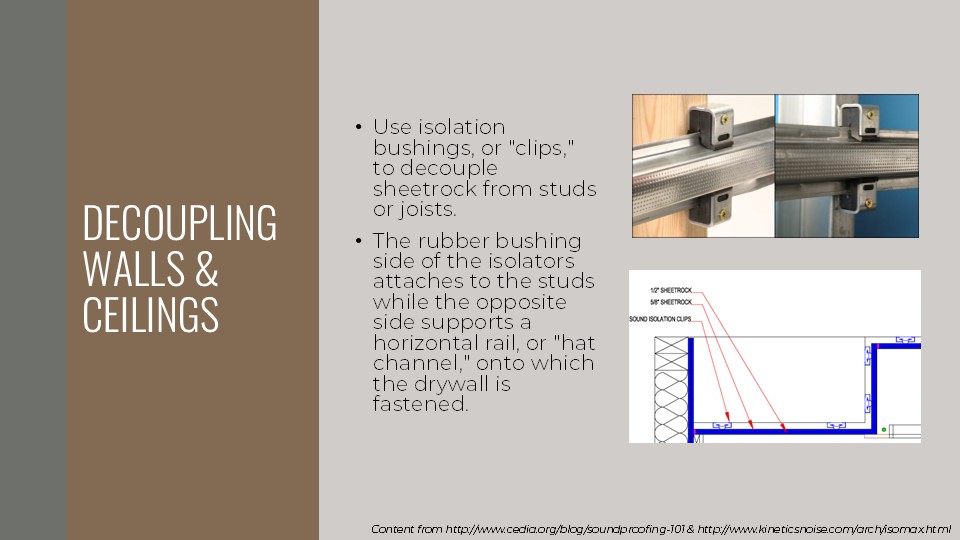

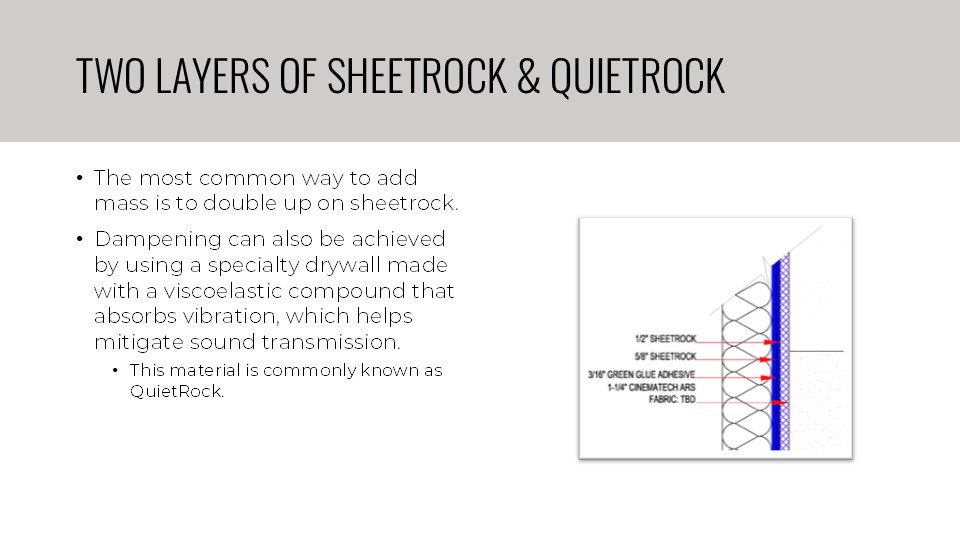

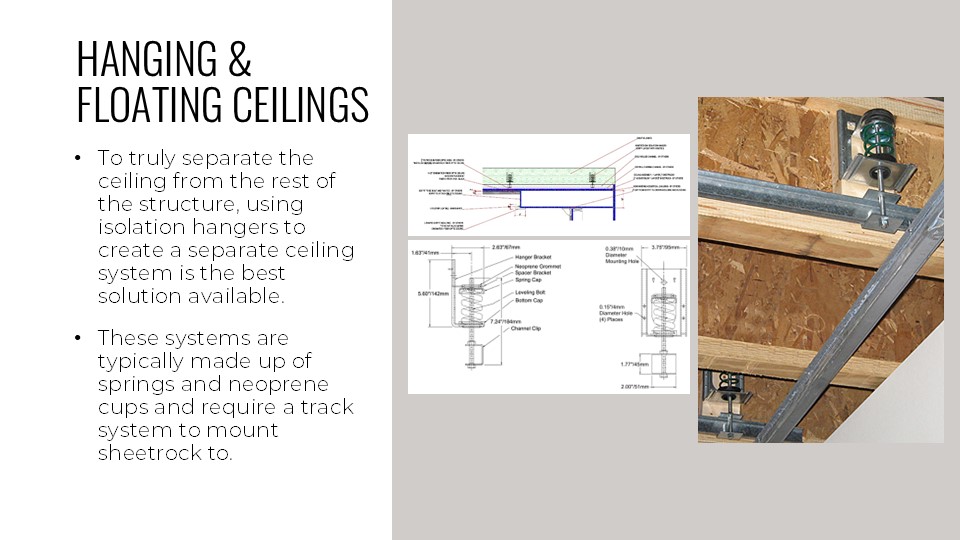

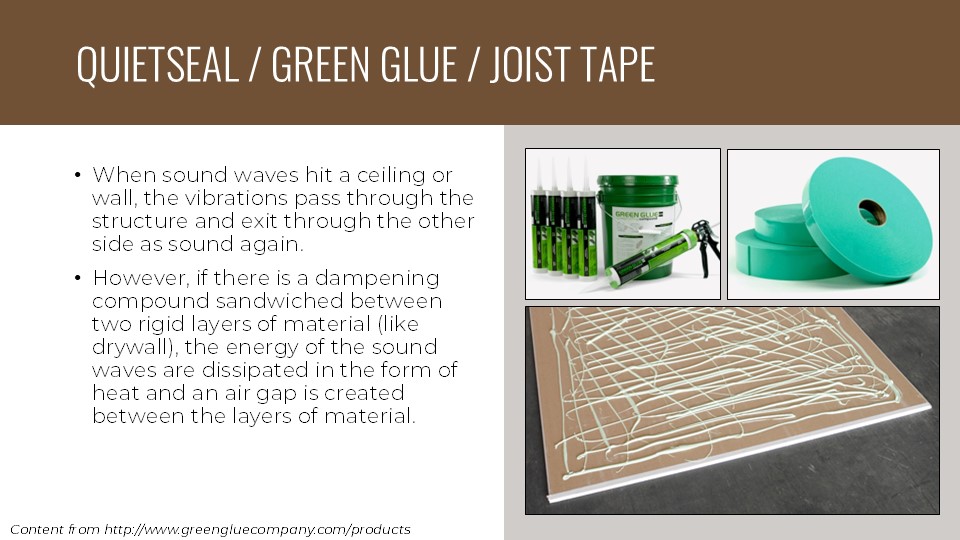

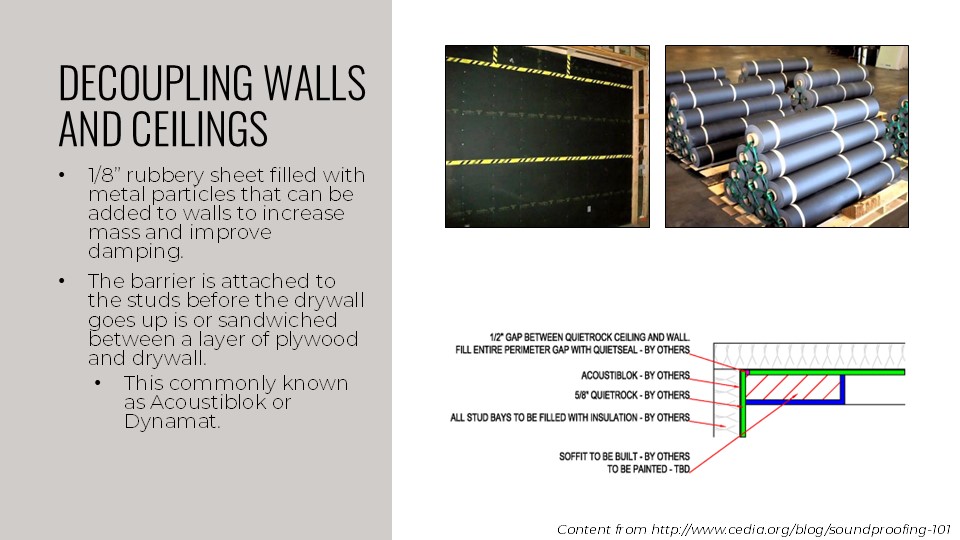

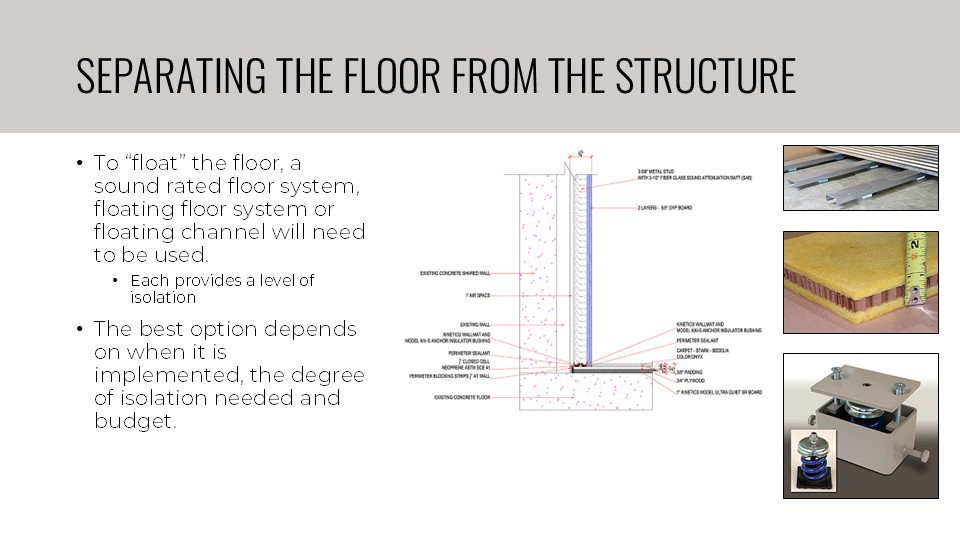

On the other hand, sound isolation aims to prevent sound from escaping or entering the theater. This is critical in creating a private, undisturbed environment. Sound isolation involves structural measures such as resilient channels, floating floors and walls, soundproof doors, and specialized drywall to block external noise and contain the theater’s audio. Unlike acoustical enhancement, which tailors the sound within the room, isolation ensures your movie night remains a sanctuary of uninterrupted enjoyment.

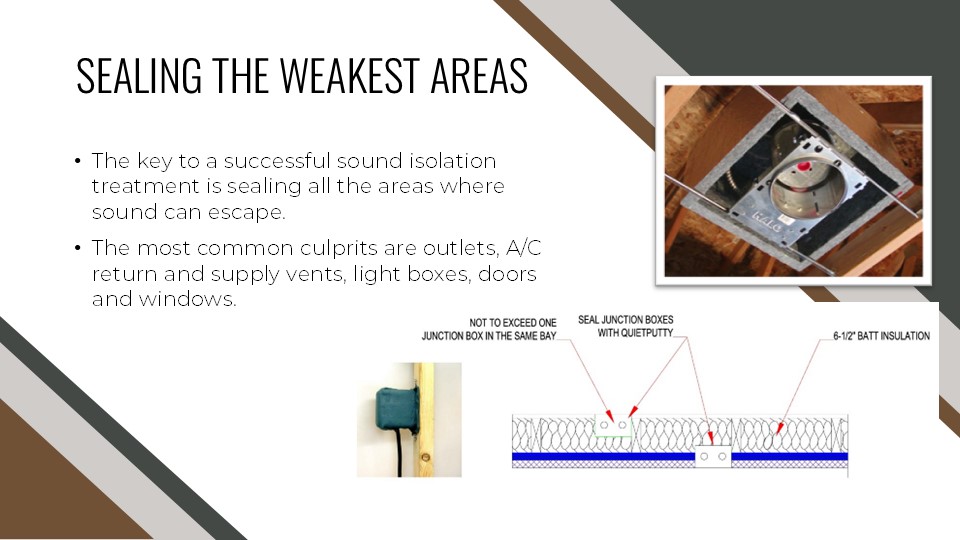

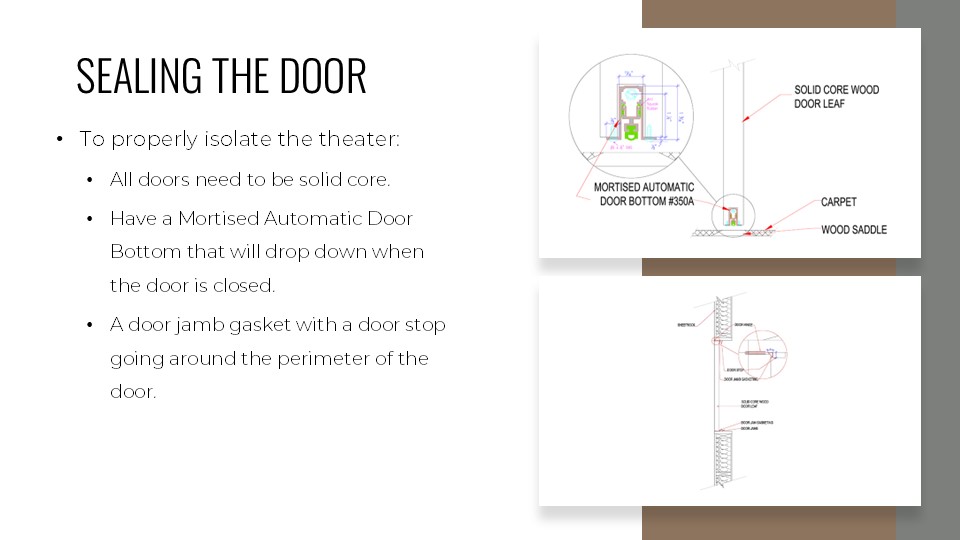

Isolating Sound: common sound leak mitigation strategies
Choosing the Best Acoustic Solutions for Your Home Theaters

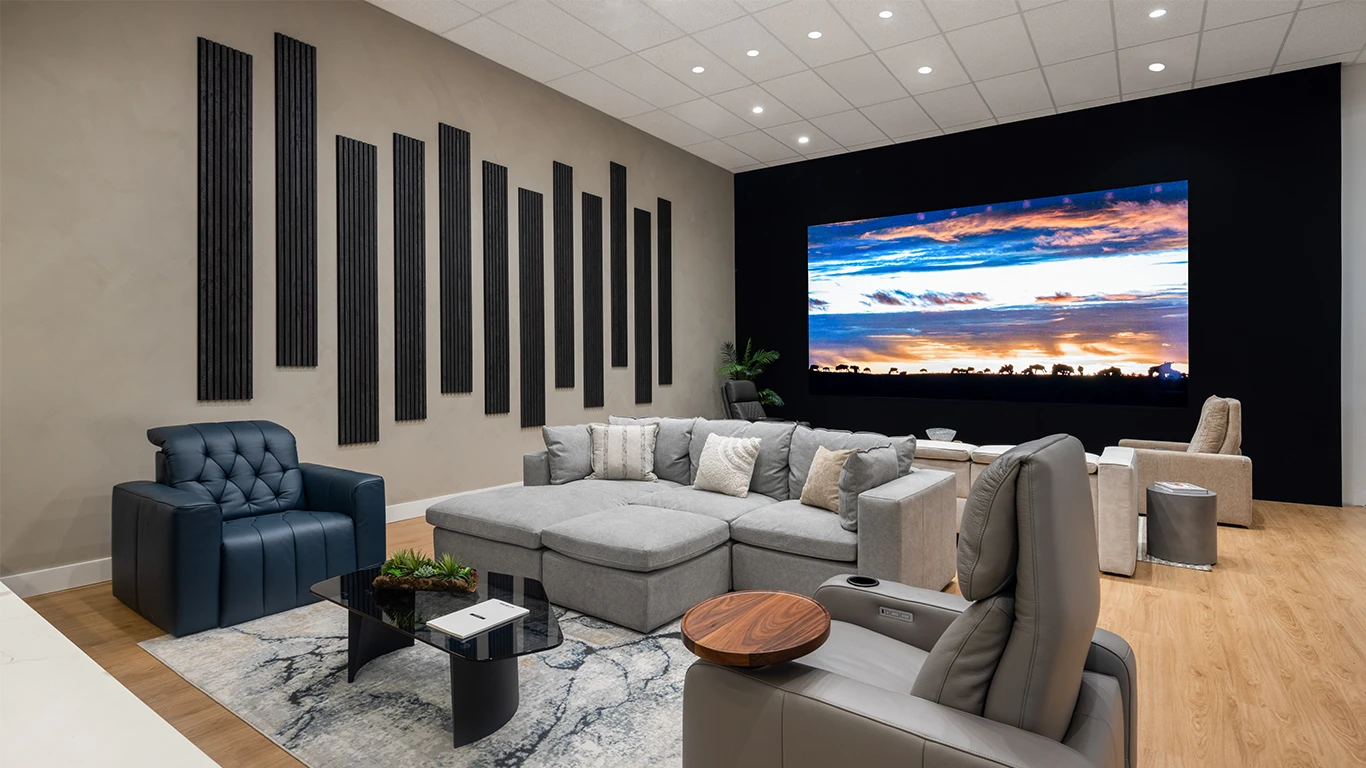

Acoustic treatment should be both functional and aesthetically pleasing. Whether it’s integrating beautiful diffusion panels that impact the space visually or hiding the treatment behind a track-based system it all depends on the vision and physical constraints of the space. Â
Why Track Based Systems May BE THE BEST CHOICE
Achieving optimal acoustical performance starts with integrating sound treatments into the foundation of a room. This approach, guided by expert sound engineers and home theater designers, ensures decisions are tailored to both the technical and aesthetic needs of the space. While hanging sound treatments can enhance acoustics, improper placement may lead to unintended consequences.

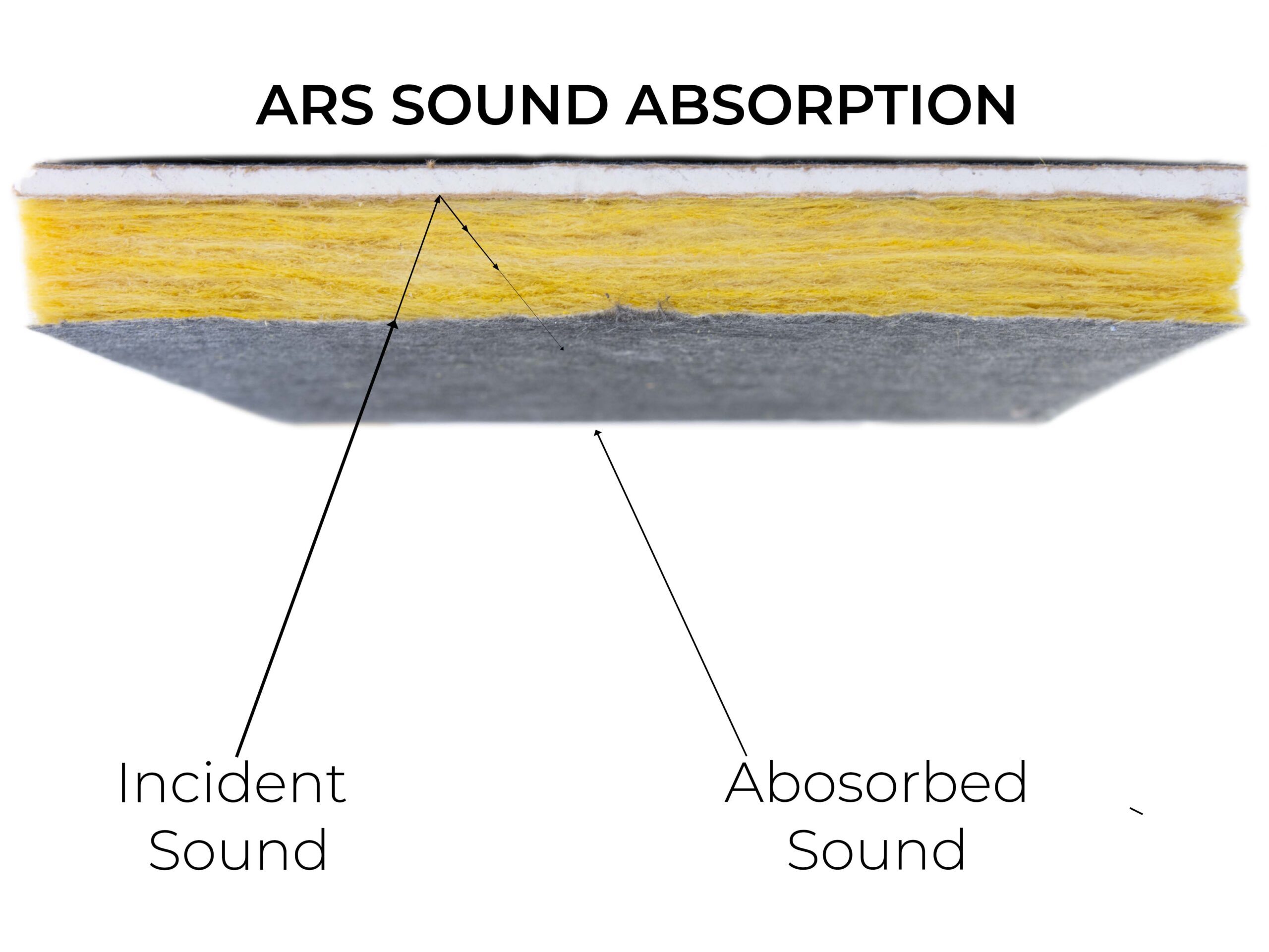

CinemaTech’s patented Acoustic Room System (ARS) offers unmatched sound quality without compromising design. This system empowers designers to craft visually stunning spaces while acoustical engineers maximize sound performance. Featuring advanced materials like CinemaTech’s exclusive sound-dampening panels—capable of controlling frequencies as low as 100Hz at just 1.25 inches thick—and patented Owens Corning diffusion panels, ARS combines innovation with superior functionality.
However, materials alone aren’t enough. The expertise of skilled designers and engineers ensures each treatment is correctly selected and precisely placed. Trusted installers complete the process with flawless execution, ensuring every acoustic element performs seamlessly. With ARS, your home theater achieves a perfect balance of sound and style.
ARS STEP-BY-STEP BREAKDOWN
A comprehensive look at an ars install:
Your Vision IS Our Mission
Great sound isn’t just a feature—it’s the heart of a luxury home theater. With CinemaTech’s expertise in home theater acoustics, you can create a space where every sound tells a story and every moment is unforgettable.
Ready to take your theater experience to the next level? Contact us today to explore our innovative acoustic solutions and turn your vision into reality.
